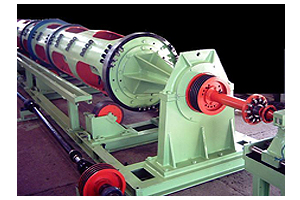

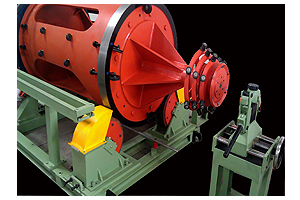

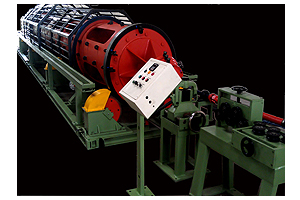

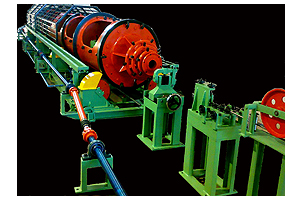

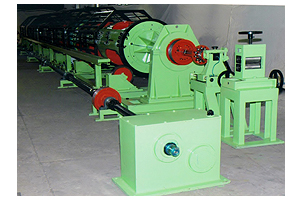

• Type : 1+6/12/18 Bobbin.
  • Suitable for Al./ Al. Alloy/ Steel/ Copper/Core , wire size : 1.5 to 5 mm.
  • Bobbin size 500, 560, 630 & 800 mm DIN.
  • Fabricated steel Tubes coupled each other with ground finished C.I. (Closed Grains) Runners supported by Hylam Rollers. Bearing at one or both ends of the Rotor.
  • Bobbins Holding: Pintle / Shaft type.
  • Band Brake type Bobbin Tension.
  • Dual capstan type Haul-Off with lay & direction change gearbox/ Separate Geared Motor.
  • Quick closing/releasing, spring loaded Die Holder with longitudinal adjustment.
  • Shaping Head.
  • Pintle type/shaft type Take-up with motorised lowering/lifting arrangement.

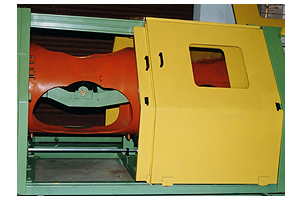

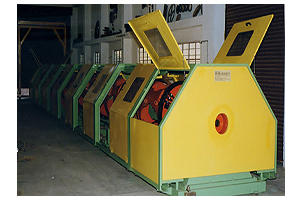

  • Telescopic type safety guard.
  • Smooth wire path with proper guiding arrangement, by Hardened Pulley at deflection & Ceramic/Hardened steel Bush.(Optional: Hardened TC bushes).
  • Pneumatic calliper disk Brakes.
  • Wire Break detector.
  • Pre-forming & post forming (Optional for steel wire).
  • Mechanical & Digital length counter.
  • Lay length by Gear Box (Lay changing by change gear) or Multi speed gearbox; driven by line shaft or Infinity lay length by separate Geared-motor with PLC control.
  • Max speed: 500 rpm for 6 Bobbin, 350 rpm for 12 Bobbin, 250 rpm for 18 Bobbin (for 630 size Bobbin)
