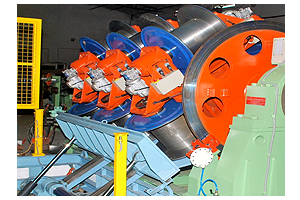

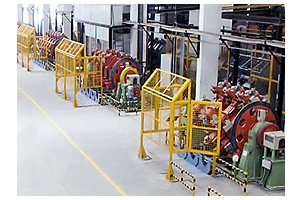

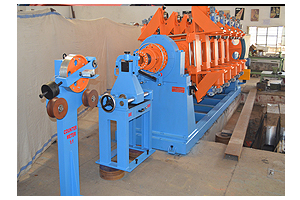

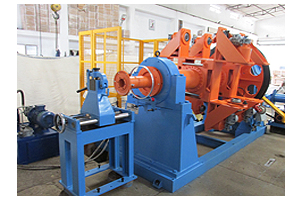

RIGID/PLANETARY STRANDING/ ARMOURING MACHINE


  • Type : 1+6+12+18+24+30 Bobbin.
  • Suitable for Cu. /Al. and core.
  • Bobbin size 500, 630 & 800 mm DIN.
  • Sun & Planetary for without back twist.
  • Column type Pay-off with both column moveable by Geared motor, lowering & lifting of Drum is motorised, Pintle type Drum holding.
  • The bobbins are hold in between two Steel Alloys Pintles, which are Hardened & Ground (Independent AC Geared Motor driven for batch loading).
  • Band brake type or Touch arm type uniform wire tension system.
  • Rotor (Cage): Fabricated Fork Type.
  • Pneumatic brakes.
  • Quick closing/releasing, spring loaded Die holder with longitudinal adjustment.
  • Dual Capstan type Haul-off with lay and direction change gear box / Separate motor driven PLC control infinity lay.

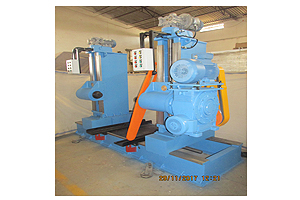

  • Column type Take-up with Traverse unit.
  • Wire Break detector.
  • Wires are guided through antifriction rollers, Ceramic Bushes & Pulleys.
  • Manual Bobbin Loading by EOT or SIDE BOTTOM HYDRAULIC BATCH LOADING SYSTEM.
